| Place of Origin: | Changzhou, China |
|---|---|
| Brand Name: | Cabory |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Plastic and Foam Inside Wooden Box Outside Strong Packing to Ensure Shipment Safety |
| Delivery Time: | 60 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Sets per Month |
| Name: | High Vacuum And High Pressure Vertical Vacuum Furnace | Core Components: | Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
|---|---|---|---|
| Dimension(L*W*H): | 300*300*500-700*700*1200(can Customized) | Heater: | Mo Belt, Tungsten, Graphite, SiMo, SiC |
| Structure: | Horizontal Or Vertical | Voltage: | Optional Customized(110V/220v/380v/660v) |
| Max. Temperature: | 1000 ℃-3000℃ | Max. Gas Pressure: | 9.8mpa |
| Usage: | Heat Treatment Furnace | Application: | Graphitization, Purification, Heating Treatmen |
| Working Atmosphere: | Vacuum, Argon, Nitrogen, Hydrogen Atmosphere Protection | Capacity: | 160l |
| Highlight: | Vertical vacuum furnace VVF type,vacuum furnace graphite element,vacuum furnace graphite |
||

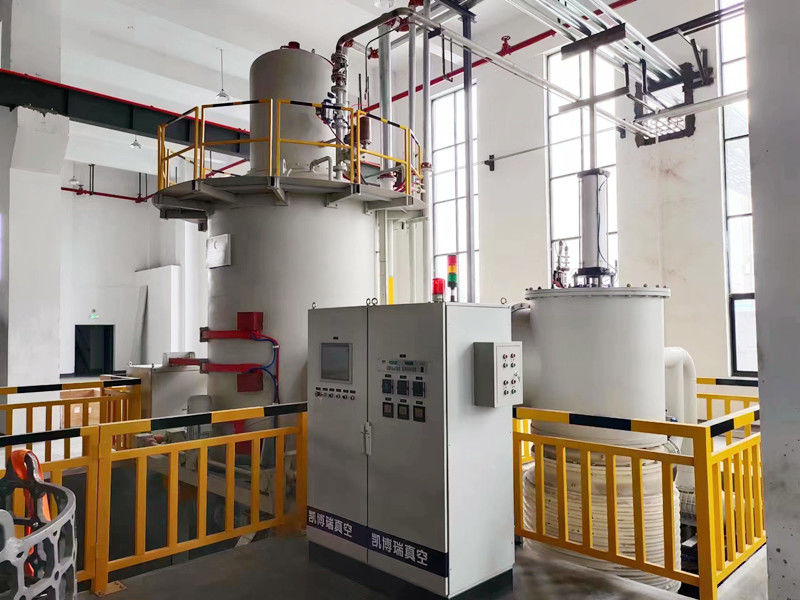

9.8MPa vertical loading protective atmosphere industrial high temperature silicon nitride vacuum gas pressing sintering furnace
1.Application:
The equipment is batch type induction furnace, mainly used for CVD in carbon carbon material and carbon composite material or graphite parts material.
2.Configuration:
380V±5%,50Hz/60Hz 3 phase 5 wire
One control cabinet to one furnace, the facility equipped of mixed gas control system, cooling tower for optional.
Specification
| Name | High Vacuum And High Pressure Vertical Vacuum Furnace |
| Core Components | Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Dimension(L*W*H) | 300*300*500-1000*1000*2000(Customized) |
| Heater | Mosi2 Heating,Mo Belt, Tungsten, Graphite, Simo, Sic |
| Structure | Horizontal, Vertical, Batch, Continuous |
| Voltage | Optional Customized(110v/220v/380v/660v) |
| Max. Temperature | 1000 ℃-3000℃ |
| Max. Gas Pressure | 9.8mpa |
| Usage | Heat Treatment Furnace |
| Structure | Horizontal Or Vertical |
| Application | Graphitization, Purification, Heating Treatmen |
| Working Atmosphere | Vacuum, Argon, Nitrogen, Hydrogen Atmosphere Protection |
| Capacity | 160l |
