| Place of Origin: | Changzhou, China |
|---|---|
| Brand Name: | Cabory |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Plastic and Foam Inside Wooden Box Outside Strong Packing to Ensure Shipment Safety |
| Delivery Time: | 60 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Sets per Month |
| Name: | Vacuum Gas Quenching Furnace | Air Cooling Pressure: | 2/4/6/10/15/20bar |
|---|---|---|---|
| Chamber Size: | 400*300*300mm (Custom Made) | Core Components: | Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Dimension(L*W*H): | 300*300*500-1000*1000*2000(Customized) | Heater: | Mosi2 Heating,Mo Belt, Tungsten, Graphite, Simo, Sic |
| Loading Capacity: | 50-1500kg | Power (Kw): | 36-500kw |
| Pressure Increasing Rate: | 0.65/0.67/0.68pa/H | Structure: | Horizontal, Vertical, Batch, Continuous |
| Ultimate Vacuum: | 3.0*10-4 Pa | Voltage: | Optional Customized(220v/380v/660v) |
| Working Temperature: | 0-1650 Degrees | Weight: | 2t-35t |
| Amosphere Protect: | Gas Protection | Furnace Structure: | Double Shell With Water Cooling |
| Furnace Temperature Uniformity: | ±5 .C | Usage: | Lab Sintering/Brazing/Quenching/Heating Treatment /Bright Annealing For Steels |
| Key Selling Points: | Easy To Operate/High Productivity/Multifunctional/Energy Saving | Melting Material: | Metal Workpiece |
| Highlight: | Multichamber vacuum furnaces,Vacuum Chamber Furnace Sintering,Vacuum Sintering Furnace High Pressure |
||

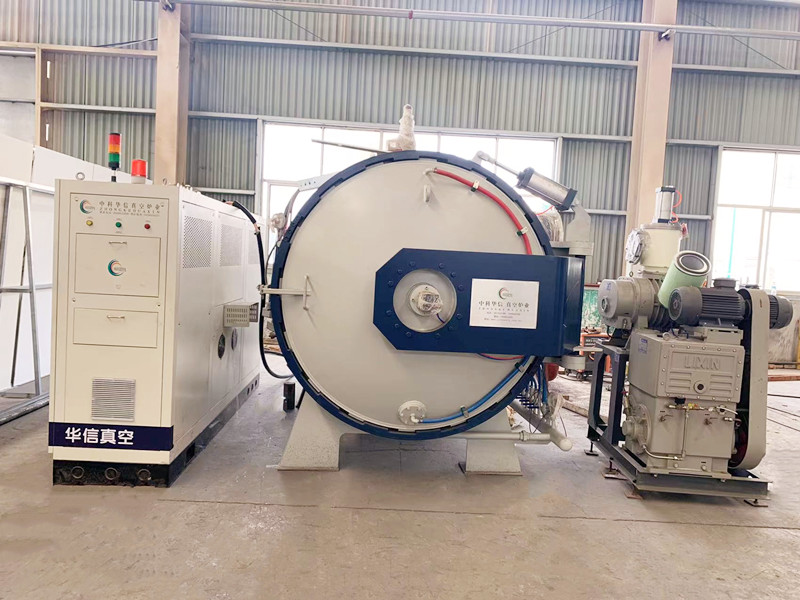

Heat Treatment Furnace Vacuum Sintering Furnace High Pressure Gas Quenching Furnace
Heat Treatment vacuum furnace is widely used in the heat treatment of metallic material or ceramic parts in low or high vacuum, especially used in the vacuum Sintering/quenching/tempering/Annealing of the materials like stainless steel, high temperature alloy, hard alloy and nonferrous metal in reducibility or protective atmosphere. Can also be used for special heat treatment of materials such as carbon products in the development process of carbonation.
Heat treatment vacuum furnace used in materials science, metal materials’s sintering, quenching, annealing and tempering.
Mainly vacuum heat treatment process:
Vacuum Sintering
Vacuum hardening/Quenching
Vacuum annealing
Vacuum Tempering
Vacuum solution heat treatment
High temperature brazing ......
Application
Quenching of high speed steel, tool and die steel, stainless steel.
Solid solution treatment of stainless steel and titanium alloys.
Magnetic materials Vacuum heat treatment of magnetic materials.
High temperature brazing and vacuum sintering.
Performance features
Convection heating, to achieve rapid and uniform heating of low-temperature strands.
The heating chamber structure in the furnace provides more uniform heating, less power loss and energy saving.
Using a new type of carbon felt composite material, it is resistant to high temperature and high pressure airflow erosion, and the heat shield has a longer service life and is easier to maintain.
High-speed and high-pressure fans and high-efficiency copper-copper heat exchangers achieve rapid cooling.
Alternate cooling method achieves uniform cooling and ensures minimal deformation of the workpiece.
The cooling pressure and wind speed of the locomotive are adjustable to achieve graded cooling.
The vertical furnace adopts screw drive, which is flexible, safe and reliable.
Optional graphite or all-metal heating chamber.
Optional fully intelligent industrial computer control and a manual operating system are available, which are easy to learn, understand and operate.
Specification
| Name | Vacuum Gas Quenching Furnace |
| Air Cooling Pressure | 2/4/6/10/15/20bar |
| Chamber Size | 400*300*300mm (Custom Made) |
| Core Components | Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Dimension(L*W*H) | 300*300*500-1000*1000*2000(Customized) |
| Heater | Mosi2 Heating,Mo Belt, Tungsten, Graphite, Simo, Sic |
| Loading Capacity | 50-1500kg |
| Power (Kw) | 36-500kw |
| Pressure Increasing Rate | 0.65/0.67/0.68pa/H |
| Structure | Horizontal, Vertical, Batch, Continuous |
| Ultimate Vacuum | 3.0*10-4 Pa |
| Voltage | Optional Customized(220v/380v/660v) |
| Working Temperature | 0-1650 Degrees |
| Weight | 2t-35t |
| Amosphere Protect | Gas Protection |
| Furnace Structure | Double Shell With Water Cooling |
| Furnace Temperature Uniformity | ±5 .C |
| Usage | Lab Sintering/Brazing/Quenching/Heating Treatment /Bright Annealing For Steels |
| Key Selling Points | Easy To Operate/High Productivity/Multifunctional/Energy Saving |
| Melting Material | Metal Workpiece |
|
Valid zone
|
Maximum temperature (℃)
|
Heating power (kw)
|
Ultimate vacuum (Pa)
|
Gas cooling pressure (bar)
|
|
450x300x300
|
1320
|
40
|
5x10-3or4x10-1
|
10
|
|
600x400x400
|
1320
|
80
|
5x10-3or4x10-1
|
10
|
|
700x500x500
|
1320
|
120
|
5x10-3or4x10-1
|
10
|
|
900x600x600
|
1320
|
150
|
5x10-3or4x10-1
|
10
|
|
1500x800x800
|
1320
|
300
|
5x10-3or4x10-1
|
10
|
