| Place of Origin: | Changzhou, China |
|---|---|
| Brand Name: | Cabory |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Plastic and Foam Inside Wooden Box Outside Strong Packing to Ensure Shipment Safety |
| Delivery Time: | 60 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Sets per Month |
| Name: | High Vacuum And High Pressure Vertical Vacuum Furnace | Core Components: | Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
|---|---|---|---|
| Dimension(L*W*H): | 300*300*500-700*700*1200(can Customized) | Heater: | Mo Belt, Tungsten, Graphite, SiMo, SiC |
| Structure: | Horizontal Or Vertical | Voltage: | Optional Customized(110V/220v/380v/660v) |
| Max. Temperature: | 1000 ℃-3000℃ | Max. Gas Pressure: | 9.8mpa |
| Usage: | Heat Treatment Furnace | Application: | Graphitization, Purification, Heating Treatmen |
| Working Atmosphere: | Vacuum, Argon, Nitrogen, Hydrogen Atmosphere Protection | Capacity: | 160l |
| Highlight: | Graphite Vertical Vacuum Furnace,Vertical Graphite Vacuum Furnace,Graphite Industrial Vacuum Furnace |
||

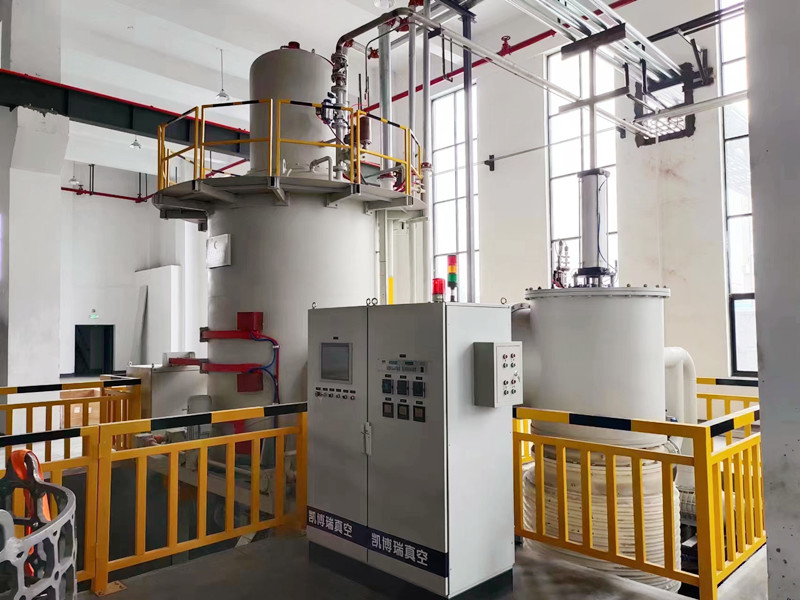

9.8MPa vertical loading protective atmosphere industrial high temperature silicon nitride vacuum gas pressing sintering furnace
The vacuum gas quenching furnace is suitable for vacuum quenching of high-alloy steel materials such as high-speed tool steel, measuring tool steel, and die steel with large diameters and external dimensions, and can also be used for tempering and annealing. The equipment has the function of convection heating, which can realize processes such as graded quenching and isothermal quenching. This Vertical vacuum high-pressure gas quenching furnace is mainly used for vacuum gas quenching of tool steel, die steel, high-speed steel, ultra-high-strength steel and other materials. Vacuum air quenching process for large and easily deformed workpieces such as parts, shafts, plate parts, etc., the deformation of the parts is small, and the cooling effect is good.
Specification
| Name | High Vacuum And High Pressure Vertical Vacuum Furnace |
| Core Components | Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Dimension(L*W*H) | 300*300*500-1000*1000*2000(Customized) |
| Heater | Mosi2 Heating,Mo Belt, Tungsten, Graphite, Simo, Sic |
| Structure | Horizontal, Vertical, Batch, Continuous |
| Voltage | Optional Customized(110v/220v/380v/660v) |
| Max. Temperature | 1000 ℃-3000℃ |
| Max. Gas Pressure | 9.8mpa |
| Usage | Heat Treatment Furnace |
| Structure | Horizontal Or Vertical |
| Application | Graphitization, Purification, Heating Treatmen |
| Working Atmosphere | Vacuum, Argon, Nitrogen, Hydrogen Atmosphere Protection |
| Capacity | 160l |
