| Place of Origin: | Changzhou, China |
|---|---|
| Brand Name: | Cabory |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Plastic and Foam Inside Wooden Box Outside Strong Packing to Ensure Shipment Safety |
| Delivery Time: | 60 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Sets per Month |
| Name: | High Vacuum And High Pressure Vertical Vacuum Furnace | Core Components: | Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
|---|---|---|---|
| Dimension(L*W*H): | 300*300*500-700*700*1200(can Customized) | Heater: | Mo Belt, Tungsten, Graphite, SiMo, SiC |
| Structure: | Horizontal Or Vertical | Voltage: | Optional Customized(110V/220v/380v/660v) |
| Max. Temperature: | 1000 ℃-3000℃ | Max. Gas Pressure: | 9.8mpa |
| Usage: | Heat Treatment Furnace | Application: | Graphitization, Purification, Heating Treatmen |
| Working Atmosphere: | Vacuum, Argon, Nitrogen, Hydrogen Atmosphere Protection | Capacity: | 160l |
| Highlight: | Vertical Bottom Vacuum,Vertical Vacuum Sintering Furnace,Vacuum Sintering Furnace For Powder Metallurgy |
||

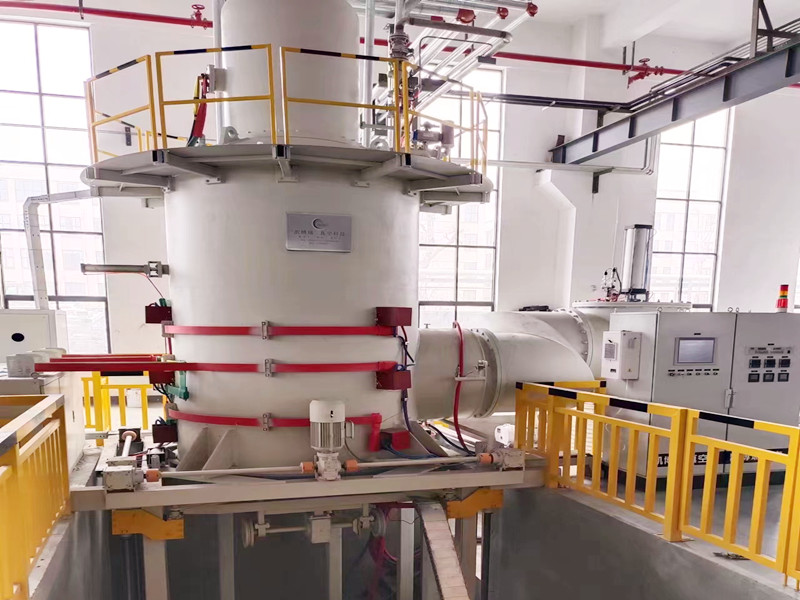

9.8MPa vertical loading protective atmosphere industrial high temperature silicon nitride vacuum gas pressing sintering furnace
Vacuum Gas Pressing Funace Application
The furnace is periodic operation, under the condition of high temperature and atmosphere pressure, mainly used to sinter cemented carbide, ceramics and powder metallurgy shaping.
Specification
| Name | High Vacuum And High Pressure Vertical Vacuum Furnace |
| Core Components | Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Dimension(L*W*H) | 300*300*500-1000*1000*2000(Customized) |
| Heater | Mosi2 Heating,Mo Belt, Tungsten, Graphite, Simo, Sic |
| Structure | Horizontal, Vertical, Batch, Continuous |
| Voltage | Optional Customized(110v/220v/380v/660v) |
| Max. Temperature | 1000 ℃-3000℃ |
| Max. Gas Pressure | 9.8mpa |
| Usage | Heat Treatment Furnace |
| Structure | Horizontal Or Vertical |
| Application | Graphitization, Purification, Heating Treatmen |
| Working Atmosphere | Vacuum, Argon, Nitrogen, Hydrogen Atmosphere Protection |
| Capacity | 160l |
