| Place of Origin: | Changzhou, China |
|---|---|
| Brand Name: | Cabory |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Plastic and Foam Inside Wooden Box Outside Strong Packing to Ensure Shipment Safety |
| Delivery Time: | 60 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Sets per Month |
| Name: | Vacuum Brazing Furnace | Core Components: | Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
|---|---|---|---|
| Dimension(L*W*H): | 300*300*500-700*700*1200(can Customized) | Loading Capacity: | 50-1500kg |
| Vacuum System: | Leybold, EVP, Edwards, Kinney | Power (Kw): | 36-500kw |
| Structure: | Horizontal, Vertical, Batch, Continuous | Ultimate Vacuum: | 10~0.001pa |
| Heater: | Mo Belt, Tungsten, Graphite, SiMo, SiC | Voltage: | Optional Customized(110V/220v/380v/660v) |
| Weight: | 2t-35t | Usage: | Brazing Furnace |
| Key Selling Points: | Easy To Operate/High Productivity/Multifunctional/Energy Saving | Melting Material: | Metal Workpiece |
| Chamber Material: | Cast Iron, Stainless Steel, Optional | Application: | Metal Brazing |
| Max Temperature: | 1200C - 1700C | Heating Rate: | 0-20C/min. |
| Power Source: | Electric | ||
| Highlight: | 1350C Vacuum Brazing Furnace,Vacuum Brazing Ovens,Vacuum Brazing Furnace for Medical |
||

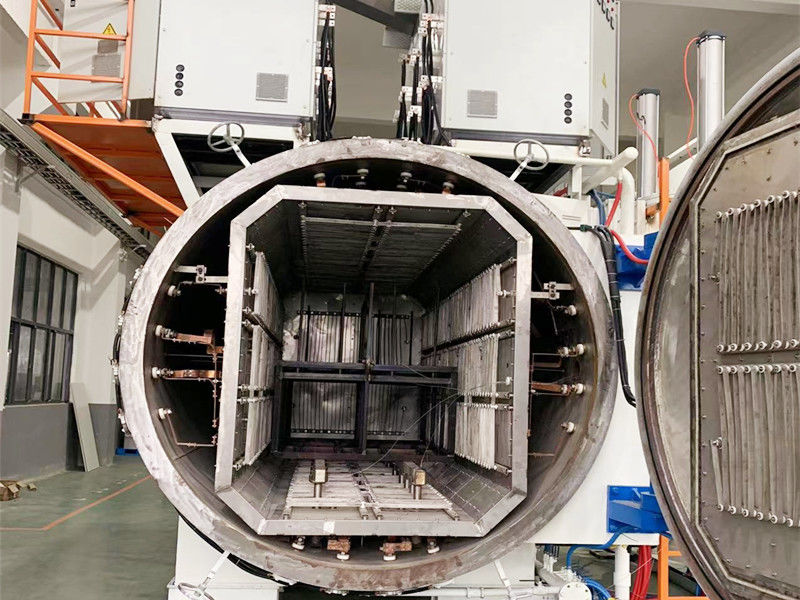

Graphite rod heating element high temperature vacuum brazing furnace 2200 Vacuum Hardening Sintering Melting
By adding Ti,Zr,Hf,V,Nb or Ta etc. rare earth element to active metal solder, under the condition of high temperature and vacuum, mainly utilizes vacuum brazing furnace to weld copper foil and ceramic substrate together to make AMB ceramic substrate.
Specification
| Name | Vacuum Brazing Furnace |
| Core Components | Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Dimension(L*W*H) | 300*300*500-1000*1000*2000(Customized) |
| Heater | Mosi2 Heating,Mo Belt, Tungsten, Graphite, Simo, Sic |
| Loading Capacity | 50-1500kg |
| Power (Kw) | 36-500kw |
| Structure | Horizontal, Vertical, Batch, Continuous |
| Ultimate Vacuum | 10~0.001pa |
| Voltage | Optional Customized(110V/220v/380v/660v) |
| Weight | 2t-35t |
| Usage | Lab Sintering/Brazing/Quenching/Heating Treatment /Bright Annealing For Steels |
| Key Selling Points | Easy To Operate/High Productivity/Multifunctional/Energy Saving |
| Melting Material | Metal Workpiece |
| Chamber material | Cast iron, stainless steel, optional |
| Application | Metal brazing |
| Usage | Brazing Furnace |
| Max Temperature | 1200C - 1700C |
| Continue Operating Temp. | 1600℃ |
| heating rate | 0-20C/min. |
| temperature accuracy | +/-1C |
| Power Source | Electric |
Application
Vacuum brazing furnace is used for vacuum brazing of stainless steel, carbon steel, titanium alloy, tool and die steel, carbide, non-ferrous metals, etc.
Vacuum diffusion welding furnace is used for diffusion welding of various metal materials and ceramic materials.
Vacuum aluminum brazing furnace is used for aluminum brazing of heat exchangers and electronic communication components for automobiles, aircraft, ships, compressors, air separation equipment, household appliances, etc.
Performance characteristics
Multi-zone heating and multi-zone temperature control ensure good working temperature uniformity.
Good working vacuum and pressure rise rate, good surface quality of workpiece.
A variety of furnace types are available, including horizontal, double-chamber, and three-chamber semi-continuous.
