| Place of Origin: | Changzhou, China |
|---|---|
| Brand Name: | Cabory |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Plastic and Foam Inside Wooden Box Outside Strong Packing to Ensure Shipment Safety |
| Delivery Time: | 60 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Sets per Month |
| Name: | Vacuum Brazing Furnace | Core Components: | Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
|---|---|---|---|
| Dimension(L*W*H): | 300*300*500-700*700*1200(can Customized) | Loading Capacity: | 50-1500kg |
| Vacuum System: | Leybold, EVP, Edwards, Kinney | Power (Kw): | 36-500kw |
| Structure: | Horizontal, Vertical, Batch, Continuous | Ultimate Vacuum: | 10~0.001pa |
| Heater: | Mo Belt, Tungsten, Graphite, SiMo, SiC | Voltage: | Optional Customized(110V/220v/380v/660v) |
| Weight: | 2t-35t | Usage: | Brazing Furnace |
| Key Selling Points: | Easy To Operate/High Productivity/Multifunctional/Energy Saving | Melting Material: | Metal Workpiece |
| Chamber Material: | Cast Iron, Stainless Steel, Optional | Application: | Metal Brazing |
| Max Temperature: | 1200C - 1700C | Heating Rate: | 0-20C/min. |
| Power Source: | Electric | ||
| Highlight: | aluminium brazing vacuum furnace,Vacuum Brazing of Aluminium,Vacuum Aluminum Brazing |
||

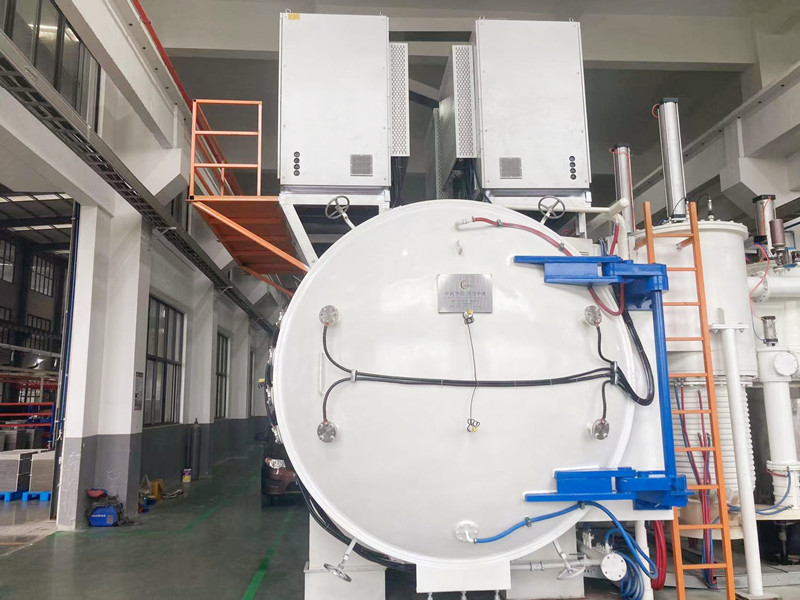

Industrial Furnace Aluminum Water-Cooled Plates Air-Cooled Boxes Vacuum Brazing Aluminum Brazing Vacuum Furnace
Vacuum brazing furnace is mainly used for aluminum brazing, copper brazing, stainless steel brazing and nickel alloy brazing of aircraft parts, automobile parts, electronic communication parts, household appliances, heat exchangers, various radiators. Due to heating under vacuum, the grease and oxide film on the surface of the workpiece can be removed. Therefore, the surface of the part is high in brightness, no flux is required, and no post-weld cleaning is required,
Specification
| Name | Vacuum Brazing Furnace |
| Core Components | Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Dimension(L*W*H) | 300*300*500-1000*1000*2000(Customized) |
| Heater | Mosi2 Heating,Mo Belt, Tungsten, Graphite, Simo, Sic |
| Loading Capacity | 50-1500kg |
| Power (Kw) | 36-500kw |
| Structure | Horizontal, Vertical, Batch, Continuous |
| Ultimate Vacuum | 10~0.001pa |
| Voltage | Optional Customized(110V/220v/380v/660v) |
| Weight | 2t-35t |
| Usage | Lab Sintering/Brazing/Quenching/Heating Treatment /Bright Annealing For Steels |
| Key Selling Points | Easy To Operate/High Productivity/Multifunctional/Energy Saving |
| Melting Material | Metal Workpiece |
| Chamber material | Cast iron, stainless steel, optional |
| Application | Metal brazing |
| Usage | Brazing Furnace |
| Max Temperature | 1200C - 1700C |
| Continue Operating Temp. | 1600℃ |
| heating rate | 0-20C/min. |
| temperature accuracy | +/-1C |
| Power Source | Electric |
Application
Vacuum brazing furnace is used for vacuum brazing of stainless steel, carbon steel, titanium alloy, tool and die steel, carbide, non-ferrous metals, etc.
Vacuum diffusion welding furnace is used for diffusion welding of various metal materials and ceramic materials.
Vacuum aluminum brazing furnace is used for aluminum brazing of heat exchangers and electronic communication components for automobiles, aircraft, ships, compressors, air separation equipment, household appliances, etc.
Performance characteristics
Multi-zone heating and multi-zone temperature control ensure good working temperature uniformity.
Good working vacuum and pressure rise rate, good surface quality of workpiece.
A variety of furnace types are available, including horizontal, double-chamber, and three-chamber semi-continuous.
