| Place of Origin: | Changzhou, China |
|---|---|
| Brand Name: | Cabory |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Plastic and Foam Inside Wooden Box Outside Strong Packing to Ensure Shipment Safety |
| Delivery Time: | 60 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Sets per Month |
| Name: | Vacuum Brazing Furnace | Core Components: | Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
|---|---|---|---|
| Dimension(L*W*H): | 300*300*500-700*700*1200(can Customized) | Loading Capacity: | 50-1500kg |
| Vacuum System: | Leybold, EVP, Edwards, Kinney | Power (Kw): | 36-500kw |
| Structure: | Horizontal, Vertical, Batch, Continuous | Ultimate Vacuum: | 10~0.001pa |
| Heater: | Mo Belt, Tungsten, Graphite, SiMo, SiC | Voltage: | Optional Customized(110V/220v/380v/660v) |
| Weight: | 2t-35t | Usage: | Brazing Furnace |
| Key Selling Points: | Easy To Operate/High Productivity/Multifunctional/Energy Saving | Melting Material: | Metal Workpiece |
| Chamber Material: | Cast Iron, Stainless Steel, Optional | Application: | Metal Brazing |
| Max Temperature: | 1200C - 1700C | Heating Rate: | 0-20C/min. |
| Power Source: | Electric | ||
| Highlight: | aluminium brazing furnace,aluminium brazing furnace,Vacuum Aluminum Brazing Furnaces VAB |
||

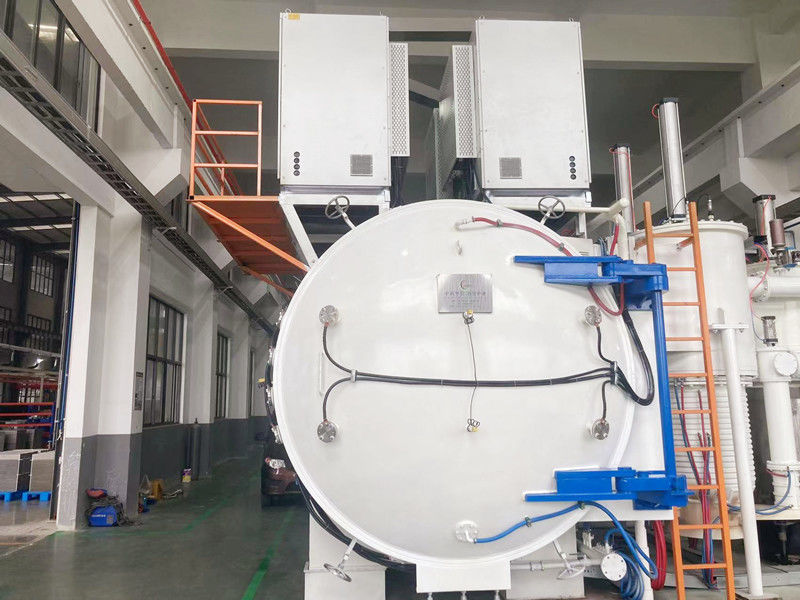

1300C High Quality Vacuum System Vacuum Heat Treatment Furnace Vacuum Brazing Furnace Price
Vacuum atmosphere furnace is widely used for heat treatment of hard alloy,ceramic,powder metallurgy materials under low vacuum,reducing and protective atmosphere. It also can be used for quenching,annealing and brazing of high-speed steel,alloy grinding tools, soft magnetic allys and other materials.
Specification
| Name | Vacuum Brazing Furnace |
| Core Components | Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Dimension(L*W*H) | 300*300*500-1000*1000*2000(Customized) |
| Heater | Mosi2 Heating,Mo Belt, Tungsten, Graphite, Simo, Sic |
| Loading Capacity | 50-1500kg |
| Power (Kw) | 36-500kw |
| Structure | Horizontal, Vertical, Batch, Continuous |
| Ultimate Vacuum | 10~0.001pa |
| Voltage | Optional Customized(110V/220v/380v/660v) |
| Weight | 2t-35t |
| Usage | Lab Sintering/Brazing/Quenching/Heating Treatment /Bright Annealing For Steels |
| Key Selling Points | Easy To Operate/High Productivity/Multifunctional/Energy Saving |
| Melting Material | Metal Workpiece |
| Chamber material | Cast iron, stainless steel, optional |
| Application | Metal brazing |
| Usage | Brazing Furnace |
| Max Temperature | 1200C - 1700C |
| Continue Operating Temp. | 1600℃ |
| heating rate | 0-20C/min. |
| temperature accuracy | +/-1C |
| Power Source | Electric |
Application
Vacuum brazing furnace is used for vacuum brazing of stainless steel, carbon steel, titanium alloy, tool and die steel, carbide, non-ferrous metals, etc.
Vacuum diffusion welding furnace is used for diffusion welding of various metal materials and ceramic materials.
Vacuum aluminum brazing furnace is used for aluminum brazing of heat exchangers and electronic communication components for automobiles, aircraft, ships, compressors, air separation equipment, household appliances, etc.
Performance characteristics
Multi-zone heating and multi-zone temperature control ensure good working temperature uniformity.
Good working vacuum and pressure rise rate, good surface quality of workpiece.
A variety of furnace types are available, including horizontal, double-chamber, and three-chamber semi-continuous.
