| Place of Origin: | Changzhou, China |
|---|---|
| Brand Name: | Cabory |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Plastic and Foam Inside Wooden Box Outside Strong Packing to Ensure Shipment Safety |
| Delivery Time: | 60 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Sets per Month |
| Name: | Vacuum Gas Quenching Furnace | Voltage: | Optional Customized(220v/380v/660v) |
|---|---|---|---|
| Dimension(L*W*H): | 300*300*500-700*700*1200(can Customized) | Oil Tank Capacity: | 800L To 14000L(depend On Model) |
| Loading Capacity: | 50-1500kg | Vacuum System: | Leybold, EVP, Edwards, Kinney |
| Heater: | Mo Belt, Tungsten, Graphite, SiMo, SiC | Max Temperature: | 1300℃ (custom Made) |
| Applicable Industries: | Brazing Industry | Power (Kw): | 36-500kw |
| Furnace Type: | Vacuum Furnace | Structure: | Horizontal, Vertical, Batch, Continuous |
| Ultimate Vacuum: | 3.0*10-4 Pa | Key Selling Points: | Easy To Operate/High Productivity/Multifunctional/Energy Saving |
| Pressure Rise Rate: | ≤0.5 Pa/h | ||
| Highlight: | Dual-chamber Oil Quenching Furnace,Quenching Furnace for grinding balls,Furnace for Oil Quenching |
||

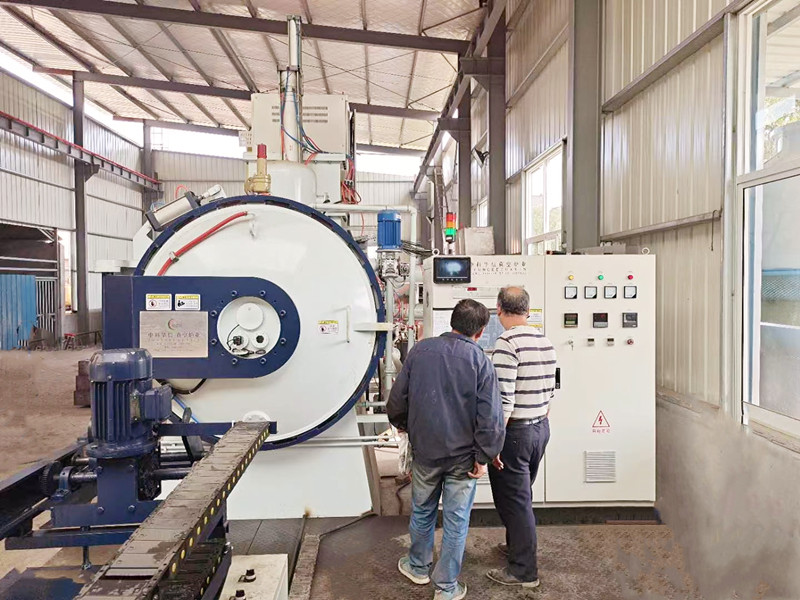

Heat Treatment Furnace Oil Quenching Vacuum Furnace GCr15
Vacuum oil&gas quenching furnace with double chamber structure which can be used for oil
quenching/hardening and gas quenching/hardening.
Vacuum oil and gas quenching furnace is mainly used for cool work &hot work steel, high speed steel, tool steel material vacuum quenching, tempering and solution-ageing process. For example: Stainless steel Especially for large workpiece and some material hard to do gas quenching.
Furnace with automatic intelligent control, easy to operate, and with high safety system.
Specification
| Usage | Vacuum Oil Quenching Furnace |
| Voltage | Optional Customized(220v/380v/660v) |
| Oil tank Capacity | 800L to 14000L(depend on model) |
| Loading capacity | 50-1500kg (adjustable) |
| Vacuum system | Leybold, EVP, Edwards, Kinney |
| Heater | Mo belt, Tungsten, Graphite, SiMo, SiC |
| Max temperature | 1300℃ (custom made) |
| Power (kW) | 36-500kw |
| Applicable Industries | Brazing industry |
| Dimension(L*W*H) | 300*300*500-700*700*1200(can customized) |
| Heating element | MoSi2 Heating / Graphite Heating |
| Furnace type | Vacuum Furnace |
| Ultimate Vacuum | 3.0*10-4 Pa |
| Structure | Horizontal, Vertical, Batch, Continuous |
| Pressure rise rate | ≤0.5 Pa/h |
Application
Bright quenching, tempering, oil quenching or pressurized (high pressure) gas quenching of alloy steel, high speed steel, tool and die steel, bearing steel, spring steel, stainless steel and other materials.
Vacuum heat treatment of magnetic materials and hard gold, high temperature vacuum brazing and vacuum sintering.
Features
Convection heating achieves rapid and uniform heating of the low-temperature section. The heating chamber structure in the furnace provides more uniform heating, low power loss and energy saving.
Using a new type of carbon felt composite material, it is resistant to high temperature and high pressure airflow erosion, and the heat shield has a longer service life and is easier to maintain.
High-speed and high-pressure fans, high-efficiency copper-copper heat exchangers. Achieve rapid cooling and alternate cooling methods to achieve uniform cooling and ensure minimal deformation of the workpiece.
The cooling pressure and fan speed are adjustable to achieve graded quenching. The vertical furnace adopts screw drive and has flexible movement: it is safe and reliable. Graphite and all-metal heating chambers can be used.
Optional fully intelligent industrial computer control and a manual operating system are available, which are easy to learn, understand and operate.
