| Place of Origin: | Changzhou, China |
|---|---|
| Brand Name: | Cabory |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Plastic and Foam Inside Wooden Box Outside Strong Packing to Ensure Shipment Safety |
| Delivery Time: | 60 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Sets per Month |
| Name: | Vacuum Gas Quenching Furnace | Voltage: | Optional Customized(220v/380v/660v) |
|---|---|---|---|
| Dimension(L*W*H): | 300*300*500-700*700*1200(can Customized) | Oil Tank Capacity: | 800L To 14000L(depend On Model) |
| Loading Capacity: | 50-1500kg | Vacuum System: | Leybold, EVP, Edwards, Kinney |
| Heater: | Mo Belt, Tungsten, Graphite, SiMo, SiC | Max Temperature: | 1300℃ (custom Made) |
| Applicable Industries: | Brazing Industry | Power (Kw): | 36-500kw |
| Furnace Type: | Vacuum Furnace | Structure: | Horizontal, Vertical, Batch, Continuous |
| Ultimate Vacuum: | 3.0*10-4 Pa | Key Selling Points: | Easy To Operate/High Productivity/Multifunctional/Energy Saving |
| Pressure Rise Rate: | ≤0.5 Pa/h | ||
| Highlight: | Steel Vacuum Oil Quench Furnace,Heat Treatment Vacuum Oil Quench Furnace,Heat Treatment Quench Furnace |
||

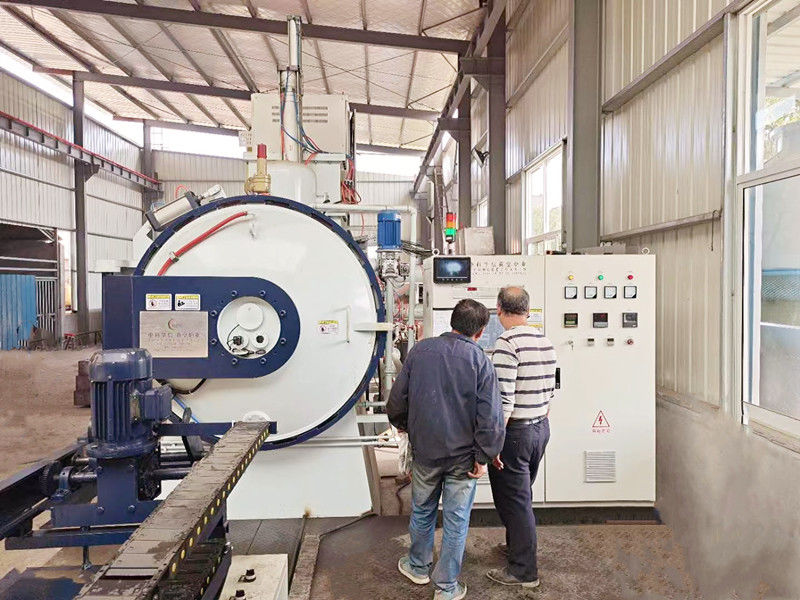

Industrial Heat Treatment Furnace Steel Oil Quenching Gas Cooling Vacuum Furnace For Sale
Specification
| Usage | Vacuum Oil Quenching Furnace |
| Voltage | Optional Customized(220v/380v/660v) |
| Oil tank Capacity | 800L to 14000L(depend on model) |
| Loading capacity | 50-1500kg (adjustable) |
| Vacuum system | Leybold, EVP, Edwards, Kinney |
| Heater | Mo belt, Tungsten, Graphite, SiMo, SiC |
| Max temperature | 1300℃ (custom made) |
| Power (kW) | 36-500kw |
| Applicable Industries | Brazing industry |
| Dimension(L*W*H) | 300*300*500-700*700*1200(can customized) |
| Heating element | MoSi2 Heating / Graphite Heating |
| Furnace type | Vacuum Furnace |
| Ultimate Vacuum | 3.0*10-4 Pa |
| Structure | Horizontal, Vertical, Batch, Continuous |
| Pressure rise rate | ≤0.5 Pa/h |
Application
Bright quenching, tempering, oil quenching or pressurized (high pressure) gas quenching of alloy steel, high speed steel, tool and die steel, bearing steel, spring steel, stainless steel and other materials.
Vacuum heat treatment of magnetic materials and hard gold, high temperature vacuum brazing and vacuum sintering.
Features
Convection heating achieves rapid and uniform heating of the low-temperature section. The heating chamber structure in the furnace provides more uniform heating, low power loss and energy saving.
Using a new type of carbon felt composite material, it is resistant to high temperature and high pressure airflow erosion, and the heat shield has a longer service life and is easier to maintain.
High-speed and high-pressure fans, high-efficiency copper-copper heat exchangers. Achieve rapid cooling and alternate cooling methods to achieve uniform cooling and ensure minimal deformation of the workpiece.
The cooling pressure and fan speed are adjustable to achieve graded quenching. The vertical furnace adopts screw drive and has flexible movement: it is safe and reliable. Graphite and all-metal heating chambers can be used.
Optional fully intelligent industrial computer control and a manual operating system are available, which are easy to learn, understand and operate.
