| Place of Origin: | Changzhou, China |
|---|---|
| Brand Name: | Cabory |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Plastic and Foam Inside Wooden Box Outside Strong Packing to Ensure Shipment Safety |
| Delivery Time: | 60 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Sets per Month |
| Name: | Vacuum Gas Quenching Furnace | Air Cooling Pressure: | 2/4/6/10/15/20bar |
|---|---|---|---|
| Chamber Size: | 400*300*300mm (Custom Made) | Core Components: | Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Dimension(L*W*H): | 300*300*500-1000*1000*2000(Customized) | Heater: | Mosi2 Heating,Mo Belt, Tungsten, Graphite, Simo, Sic |
| Loading Capacity: | 50-1500kg | Power (Kw): | 36-500kw |
| Pressure Increasing Rate: | 0.65/0.67/0.68pa/H | Structure: | Horizontal, Vertical, Batch, Continuous |
| Ultimate Vacuum: | 3.0*10-4 Pa | Voltage: | Optional Customized(220v/380v/660v) |
| Working Temperature: | 0-1650 Degrees | Weight: | 2t-35t |
| Amosphere Protect: | Gas Protection | Furnace Structure: | Double Shell With Water Cooling |
| Furnace Temperature Uniformity: | ±5 .C | Usage: | Lab Sintering/Brazing/Quenching/Heating Treatment /Bright Annealing For Steels |
| Key Selling Points: | Easy To Operate/High Productivity/Multifunctional/Energy Saving | Melting Material: | Metal Workpiece |
| Highlight: | High Pressure Vacuum Quenching Furnace,Vacuum Quenching Furnace 6-20bar,High Pressure Quenching Furnace |
||

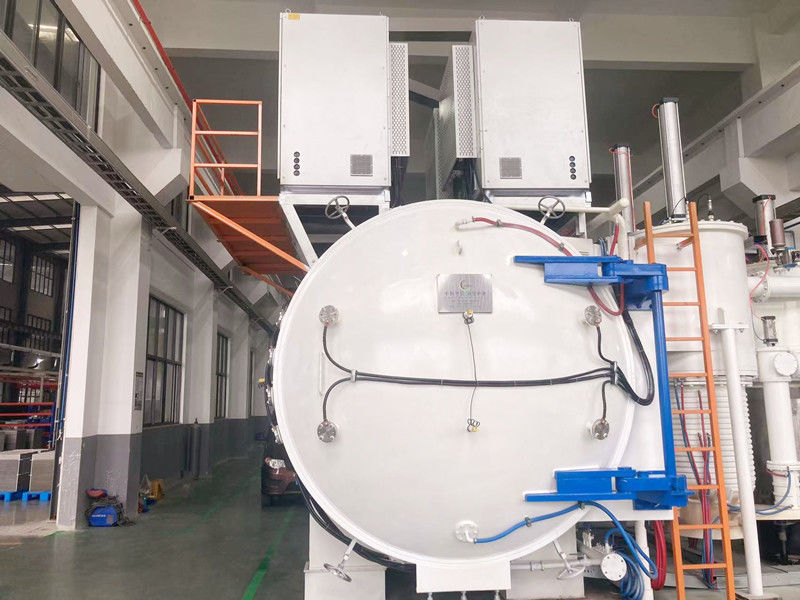

6-20 bar 100-1000 kg High Pressure Vacuum Gas Quenching Furnace For Manufacturring Plant
Applications:
1.Gravimetric analysis;
2.Quantitative analysis;
3.Sintering or Roasting or Forging or calcining;
4.Heat treating or Preheating;
5.Quenching or Hardening or Austempering
6.Annealing or Tempering or Normalizing
7.Stress Relieving
Warranty:
Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
Replacement will be shipped to you after photo or other evidence are provided and investigated.
Specification
| Name | Vacuum Gas Quenching Furnace |
| Air Cooling Pressure | 2/4/6/10/15/20bar |
| Chamber Size | 400*300*300mm (Custom Made) |
| Core Components | Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Dimension(L*W*H) | 300*300*500-1000*1000*2000(Customized) |
| Heater | Mosi2 Heating,Mo Belt, Tungsten, Graphite, Simo, Sic |
| Loading Capacity | 50-1500kg |
| Power (Kw) | 36-500kw |
| Pressure Increasing Rate | 0.65/0.67/0.68pa/H |
| Structure | Horizontal, Vertical, Batch, Continuous |
| Ultimate Vacuum | 3.0*10-4 Pa |
| Voltage | Optional Customized(220v/380v/660v) |
| Working Temperature | 0-1650 Degrees |
| Weight | 2t-35t |
| Amosphere Protect | Gas Protection |
| Furnace Structure | Double Shell With Water Cooling |
| Furnace Temperature Uniformity | ±5 .C |
| Usage | Lab Sintering/Brazing/Quenching/Heating Treatment /Bright Annealing For Steels |
| Key Selling Points | Easy To Operate/High Productivity/Multifunctional/Energy Saving |
| Melting Material | Metal Workpiece |
|
Valid zone
|
Maximum temperature (℃)
|
Heating power (kw)
|
Ultimate vacuum (Pa)
|
Gas cooling pressure (bar)
|
|
450x300x300
|
1320
|
40
|
5x10-3or4x10-1
|
10
|
|
600x400x400
|
1320
|
80
|
5x10-3or4x10-1
|
10
|
|
700x500x500
|
1320
|
120
|
5x10-3or4x10-1
|
10
|
|
900x600x600
|
1320
|
150
|
5x10-3or4x10-1
|
10
|
|
1500x800x800
|
1320
|
300
|
5x10-3or4x10-1
|
10
|
