| Place of Origin: | Changzhou, China |
|---|---|
| Brand Name: | Cabory |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Plastic and Foam Inside Wooden Box Outside Strong Packing to Ensure Shipment Safety |
| Delivery Time: | 60 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Sets per Month |
| Name: | High Vacuum And High Pressure Vertical Vacuum Furnace | Core Components: | Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
|---|---|---|---|
| Dimension(L*W*H): | 300*300*500-700*700*1200(can Customized) | Heater: | Mo Belt, Tungsten, Graphite, SiMo, SiC |
| Structure: | Horizontal Or Vertical | Voltage: | Optional Customized(110V/220v/380v/660v) |
| Max. Temperature: | 1000 ℃-3000℃ | Max. Gas Pressure: | 9.8mpa |
| Usage: | Heat Treatment Furnace | Application: | Graphitization, Purification, Heating Treatmen |
| Working Atmosphere: | Vacuum, Argon, Nitrogen, Hydrogen Atmosphere Protection | Capacity: | 160l |
| Highlight: | vertical vacuum annealing furnace,vertical vacuum furnace,vertical vacuum heat treatment furnace |
||

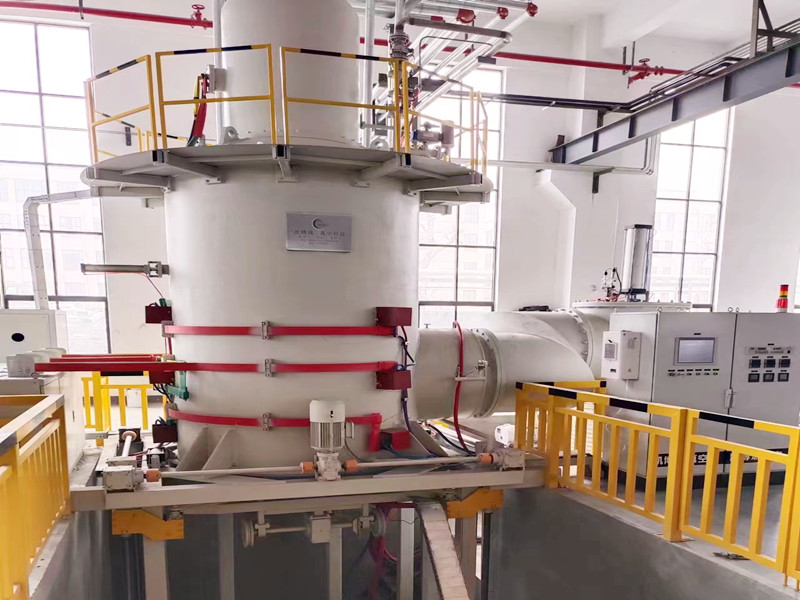

9.8MPa vertical loading protective atmosphere industrial high temperature silicon nitride vacuum gas pressing sintering furnace
This equipment is mainly used for vacuum heat treatment and vacuum post-welding heat treatment of heat-resistant steel, stainless steel and structural steel parts. It is used to eliminate the processing stress of precision parts with finished size and use residual stress stabilization treatment. It is used for finished size. Precision forging, final heat treatment of precision forgings, etc., can also be applied to heat treatment processes such as aging annealing, oil quenching, and air cooling of various materials such as high-speed steel, high-alloy tool steel, precision machine parts, etc. The parts are under working vacuum After heating, heat preservation, and cooling, stainless steel, structural steel, etc. are bright and non-oxidized, and there is no carbon increase on the surface of the parts and the phenomenon of element depletion is reduced.
Specification
| Name | High Vacuum And High Pressure Vertical Vacuum Furnace |
| Core Components | Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Dimension(L*W*H) | 300*300*500-1000*1000*2000(Customized) |
| Heater | Mosi2 Heating,Mo Belt, Tungsten, Graphite, Simo, Sic |
| Structure | Horizontal, Vertical, Batch, Continuous |
| Voltage | Optional Customized(110v/220v/380v/660v) |
| Max. Temperature | 1000 ℃-3000℃ |
| Max. Gas Pressure | 9.8mpa |
| Usage | Heat Treatment Furnace |
| Structure | Horizontal Or Vertical |
| Application | Graphitization, Purification, Heating Treatmen |
| Working Atmosphere | Vacuum, Argon, Nitrogen, Hydrogen Atmosphere Protection |
| Capacity | 160l |
