| Place of Origin: | Changzhou, China |
|---|---|
| Brand Name: | Cabory |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Plastic and Foam Inside Wooden Box Outside Strong Packing to Ensure Shipment Safety |
| Delivery Time: | 60 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Sets per Month |
| Name: | Vacuum Gas Quenching Furnace | Air Cooling Pressure: | 2/4/6/10/15/20bar |
|---|---|---|---|
| Chamber Size: | 400*300*300mm (Custom Made) | Core Components: | Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Dimension(L*W*H): | 300*300*500-1000*1000*2000(Customized) | Heater: | Mosi2 Heating,Mo Belt, Tungsten, Graphite, Simo, Sic |
| Loading Capacity: | 50-1500kg | Power (Kw): | 36-500kw |
| Pressure Increasing Rate: | 0.65/0.67/0.68pa/H | Structure: | Horizontal, Vertical, Batch, Continuous |
| Ultimate Vacuum: | 3.0*10-4 Pa | Voltage: | Optional Customized(220v/380v/660v) |
| Working Temperature: | 0-1650 Degrees | Weight: | 2t-35t |
| Amosphere Protect: | Gas Protection | Furnace Structure: | Double Shell With Water Cooling |
| Furnace Temperature Uniformity: | ±5 .C | Usage: | Lab Sintering/Brazing/Quenching/Heating Treatment /Bright Annealing For Steels |
| Key Selling Points: | Easy To Operate/High Productivity/Multifunctional/Energy Saving | Melting Material: | Metal Workpiece |
| Highlight: | Vacuum Gas Quenching Furnace,Gas Quenching Furnace 100-800kg,1320c Quenching Furnace |
||

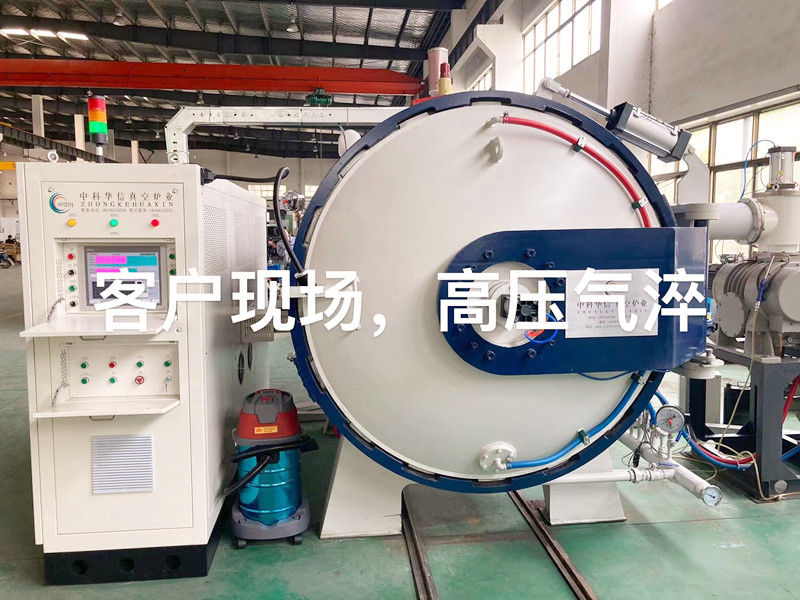

Customize 100-800kg Loading Capacity 1320c Double-Chamber Vacuum Gas Carburizing Oil Quenching Gas Cooling Furnace
Application
Mainly used for quenching of high-speed steel, tool and die steel, stainless steel; solution treatment of stainless steel and titanium alloy; magnetic vacuum heat treatment, high temperature brazing and vacuum sintering of flexible materials, and low temperature tempering can be performed by adding a convection fan.
Structure Features
The heating chamber adopts stainless steel skeleton and new carbon felt composite material, which has less deformation, is resistant to high temperature and high pressure flow erosion, with a long service life and easy maintenance. Using graphite tube heater, it’s with easy installation and maintenance, low failure rate. The air cooling adopts the jet cooling method, and the graphite nozzles are evenly distributed around the circumference to make the high-pressure airflow more reasonable (the air volume of some main air ducts can be adjusted, and the customer can control the air volume of some main air ducts according to the characteristics of the workpiece), which can effectively control workpiece deformation. High-speed, high-pressure and large-flow fans, copper-copper high-efficiency circular heat exchangers, to achieve high-speed cooling. The fan can adopt variable frequency
speed regulation to control the air cooling speed. The heating chamber can also adopt an all-metal structure to meet the solution treatment requirements of titanium alloys and precision alloys. The electronic control system adopts PLC and programmable temperature controller to realize three control modes of automatic, semi-automatic and manual, and the operation is flexible.
Specification
| Name | Vacuum Gas Quenching Furnace |
| Air Cooling Pressure | 2/4/6/10/15/20bar |
| Chamber Size | 400*300*300mm (Custom Made) |
| Core Components | Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Dimension(L*W*H) | 300*300*500-1000*1000*2000(Customized) |
| Heater | Mosi2 Heating,Mo Belt, Tungsten, Graphite, Simo, Sic |
| Loading Capacity | 50-1500kg |
| Power (Kw) | 36-500kw |
| Pressure Increasing Rate | 0.65/0.67/0.68pa/H |
| Structure | Horizontal, Vertical, Batch, Continuous |
| Ultimate Vacuum | 3.0*10-4 Pa |
| Voltage | Optional Customized(220v/380v/660v) |
| Working Temperature | 0-1650 Degrees |
| Weight | 2t-35t |
| Amosphere Protect | Gas Protection |
| Furnace Structure | Double Shell With Water Cooling |
| Furnace Temperature Uniformity | ±5 .C |
| Usage | Lab Sintering/Brazing/Quenching/Heating Treatment /Bright Annealing For Steels |
| Key Selling Points | Easy To Operate/High Productivity/Multifunctional/Energy Saving |
| Melting Material | Metal Workpiece |
|
Valid zone
|
Maximum temperature (℃)
|
Heating power (kw)
|
Ultimate vacuum (Pa)
|
Gas cooling pressure (bar)
|
|
450x300x300
|
1320
|
40
|
5x10-3or4x10-1
|
10
|
|
600x400x400
|
1320
|
80
|
5x10-3or4x10-1
|
10
|
|
700x500x500
|
1320
|
120
|
5x10-3or4x10-1
|
10
|
|
900x600x600
|
1320
|
150
|
5x10-3or4x10-1
|
10
|
|
1500x800x800
|
1320
|
300
|
5x10-3or4x10-1
|
10
|
